'86-'03 ZG1200 Voyager VII Keihin Side-draft CVK34 Carbs
This is the second iteration of a Voyager. Reduced to Four cylinders this was Kawasaki's premiere touring bike of the time. It utilized a set of CVK34 side-draft carbs and they were identical with the exception of California tuning for the entire run of the B model. The A model ran only the first year and the only real physical difference was the first year did not have the micro-switch on top for the cruise control shut-off.

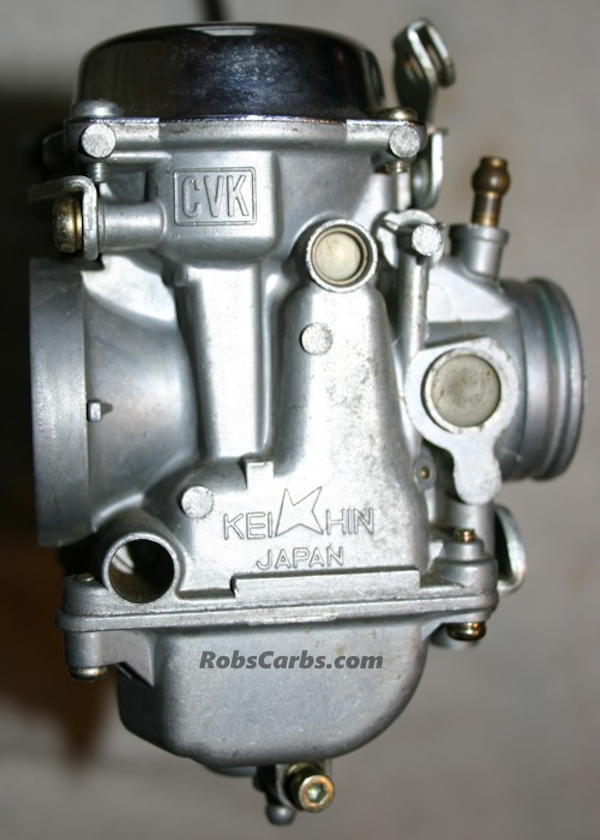

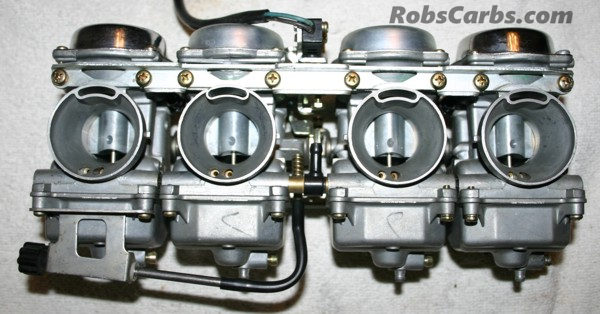

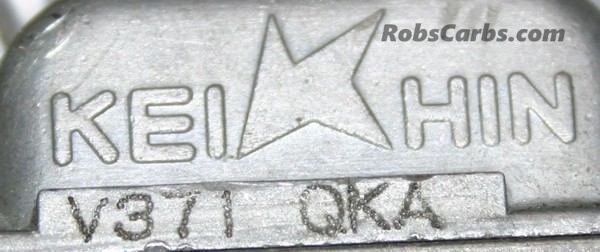

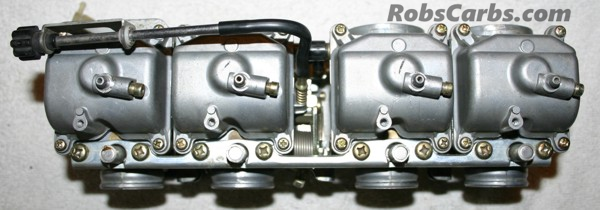

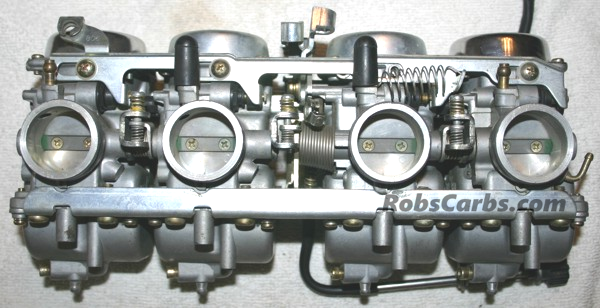

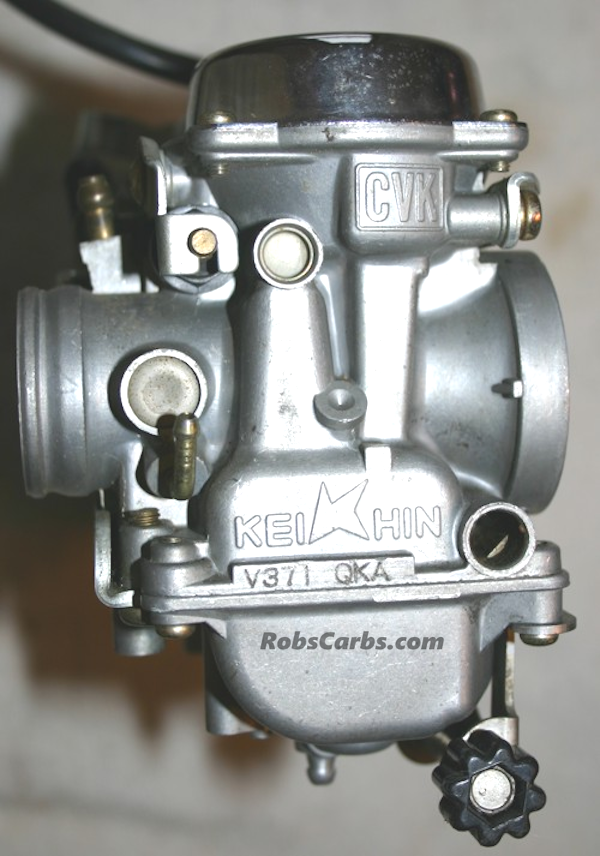

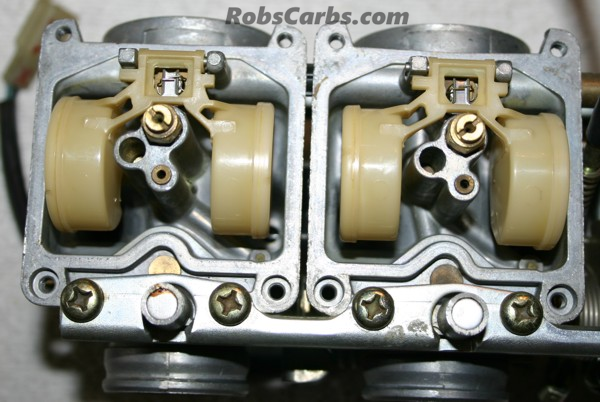

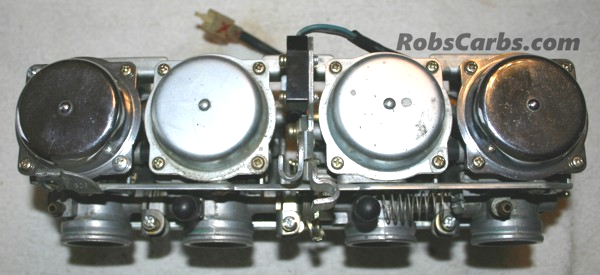

Pictured below is a set of '87-'03 ZG1200B V371 set (not rebuilt). The set I pictured were found to be not in need of rebuild and it was the only pictures I had to show the carb style. These carbs all have the same internal tuning with the exception of the California models.
'86 ZG1200A1 Voyager VII--------------------------(V212)
'86 ZG1200A1 Voyager VII----------------------------V225
California
'87-'03 ZG1200B1-B17 Voyager VII--------------------------(V371)
'87-'03 ZG1200B1-B17 Voyager VII----------------------------V373
California
