'89-'99 FZR600R with Mikuni BDS32

This was probably the most popular of the FZR series for the US market. The FZR600 uses a set of Mikuni BDS32 total downdraft carbs. These are high reving around 11K RPM and that makes the carb suffer at mid-range if there are any issues. Set-up correctly these little bikes are beasts and can be very fun at a track day.

Note: Starting in '74 Yamaha started year coding bikes in the last letter used in the name. You may see this code on your bikes paperwork or in a parts list or catalog. I leave this off as it is redundant if you are showing the year anyway. There is a chart below to find your year code.

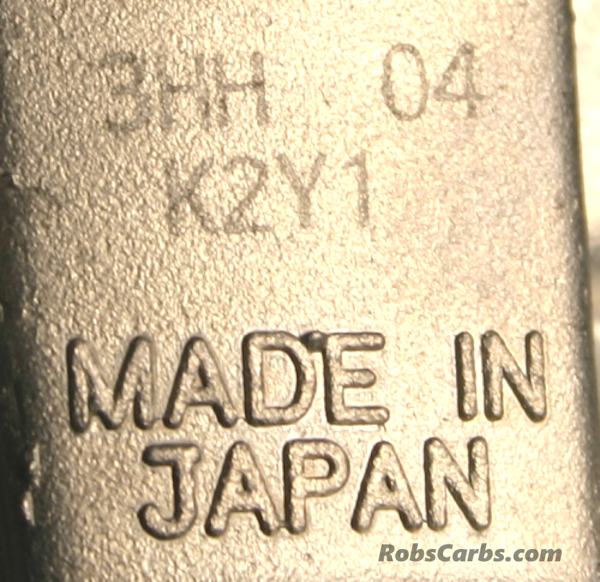

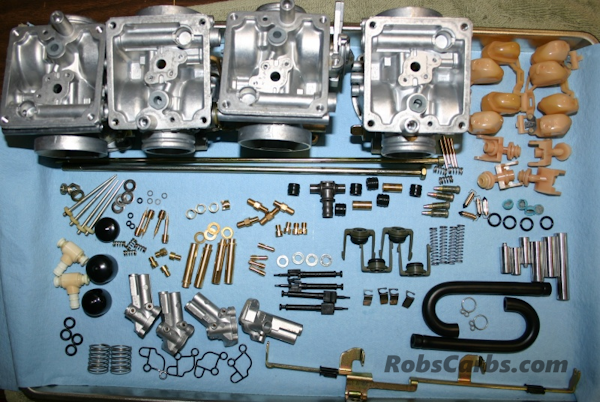

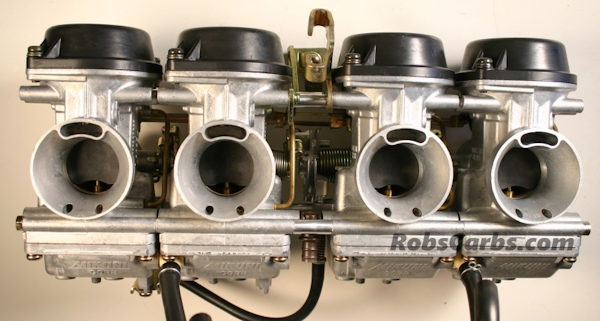

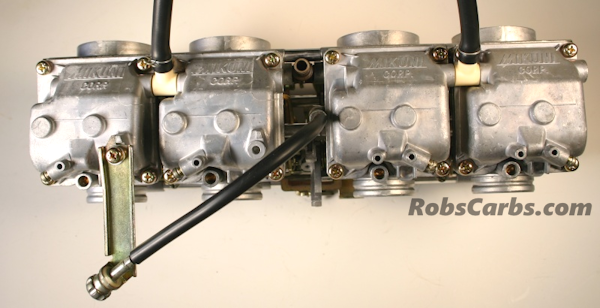

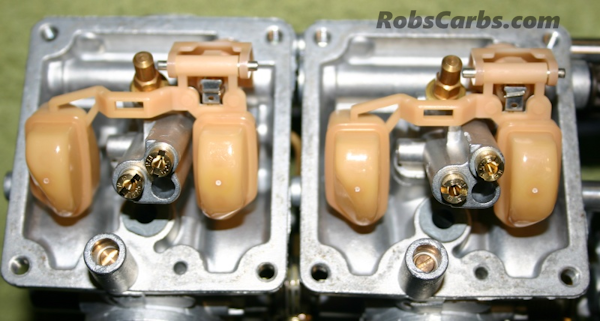

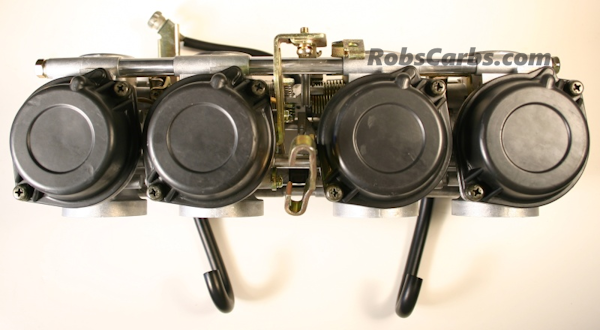

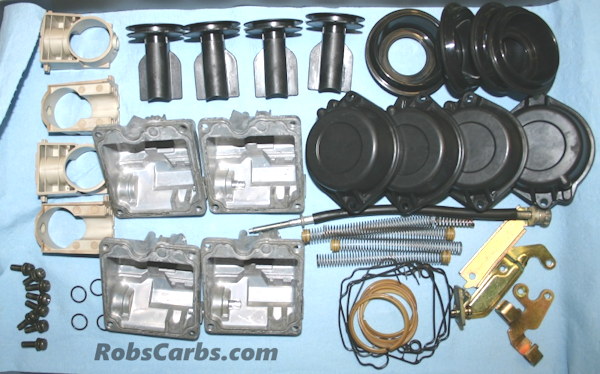

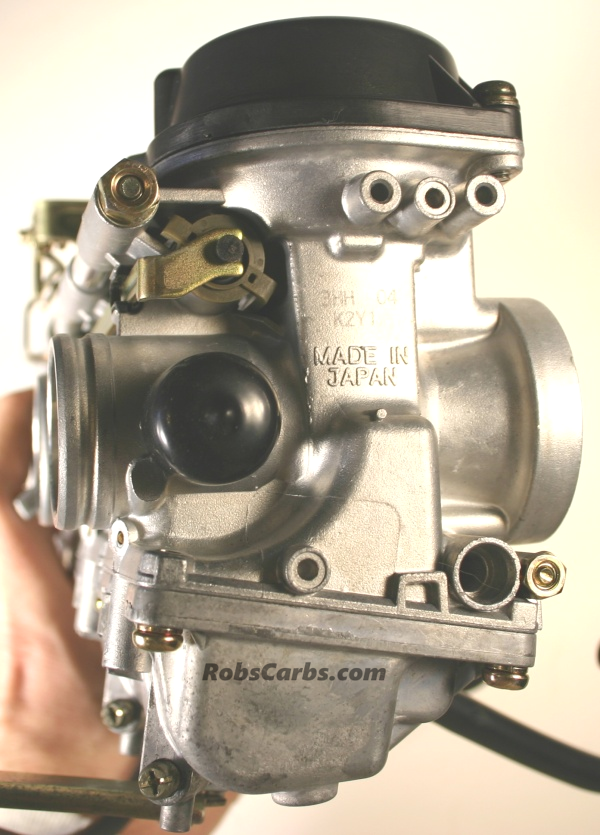

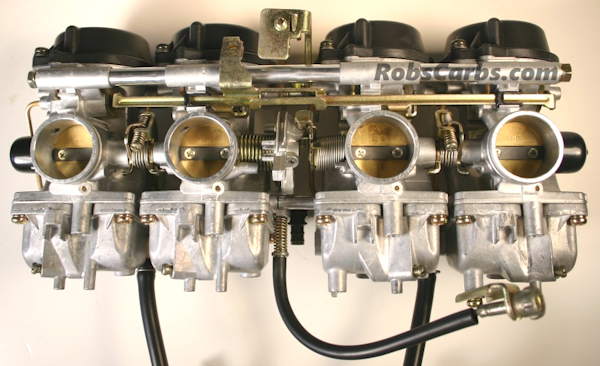

Below is a set of '92-'99 FZR600 3HH-04 Mikuni BDS32 carbs. These were the same tuning '89-'99 other than the California version , but they do come with variations of the throttle cable bracket. This mainly pertains to the B cable, but it is a good reason to ID the carbs. It is very important the float height and float seat assembly are set-up right or you can easily damage an engine with hydraulic lock-up.

'89-'90 FZR600R-------------------------------------3HH 01
'89-'90 FZR600R-------------------------------------3UU 03 California
'91 FZR600R-------------------------------------3HH 03
'91 FZR600R-------------------------------------3UU 03 California
'92-'99 FZR600R-------------------------------------3HH 04
'92-'99 FZR600R-------------------------------------3UU 04 California

Yamaha Year Codes

A-	1974
B-	1975
C-	1976
D-	1977
E-	1978
F-	1979
G-	1980
H-	1981
J-	1982
K-	1983

L-	1984
N-	1985
S-	1986
T-	1987
U-	1988
W-	1989
A-	1990
B-	1991
D-	1992
E-	1993

F-	1994
G-	1995
H-	1996
J-	1997
K-	1998
L-	1999
M-	2000
N-	2001
P-	2002
R-	2003

S-	2004
T-	2005
V-	2006
W-	2007
X-	2008
Y-	2009
Z-	2010
A-	2011
B-	2012
D-	2013

E-	2014
F-	2015
G-	2016
H-	2017
J-	2018
K-	2019
L-	2020
M-	2021
N-	2022
P-	2023
