XV700-XV1000-XV1100 Virago V-Twins with Hitachi HSC40 Carbs

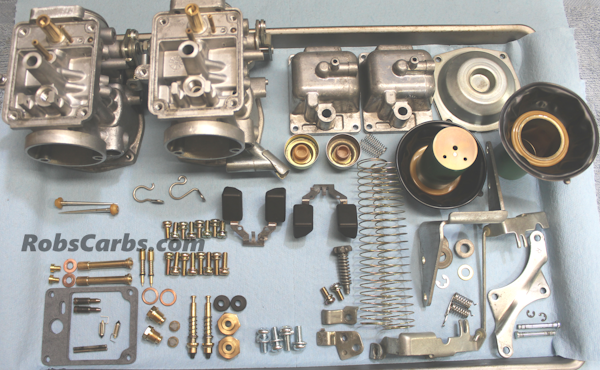

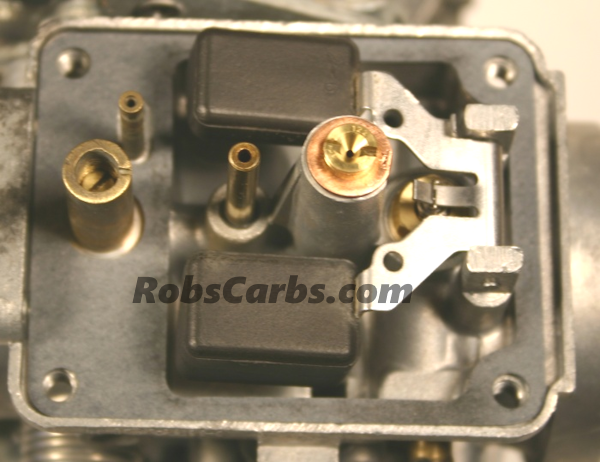

This is the second variation of the Hitachi Virago carbs found on the XV700, XV1000, and the first two years of the XV1100*. They are second gen Hitachi HSC40s. These carbs were still Hitachi like earlier 750 and 920 models, but very different in design. These require very carful rebuilds as they have a pressed-in idle jet. Also, sometimes they have had earlier parts introduced that will not properly work. They also have a very specific slide made just for this version and many other pitfalls.
Note: Starting in '74 Yamaha started year coding bikes in the last letter used in the name. You may see this code on your bikes paperwork or in a parts list or catalog. I leave this off as it is redundant if you are showing the year anyway. There is a chart below to find your year code.

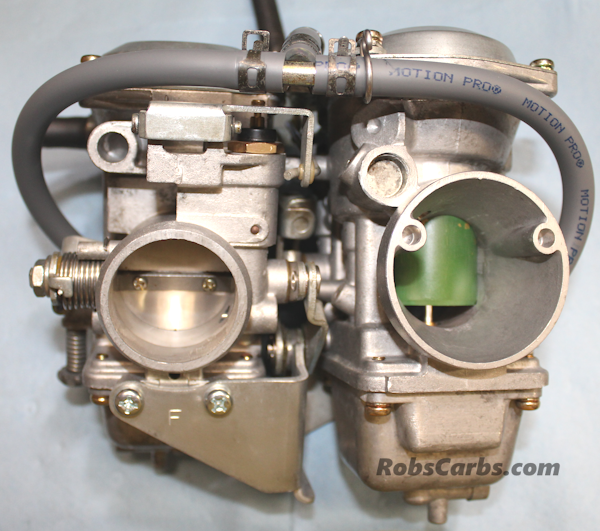

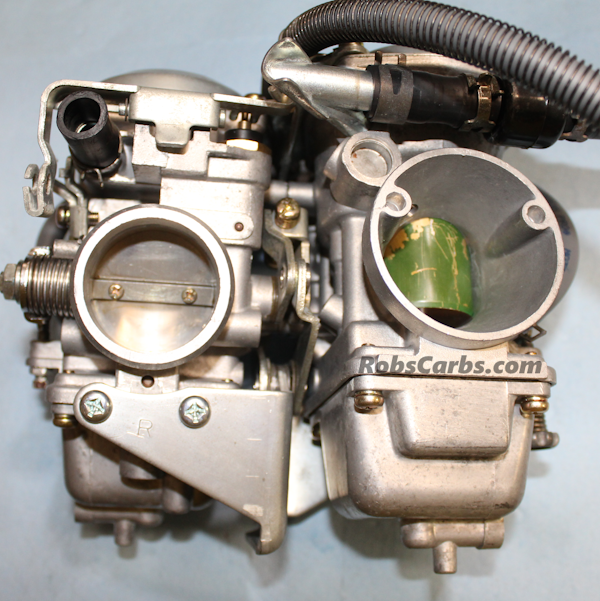

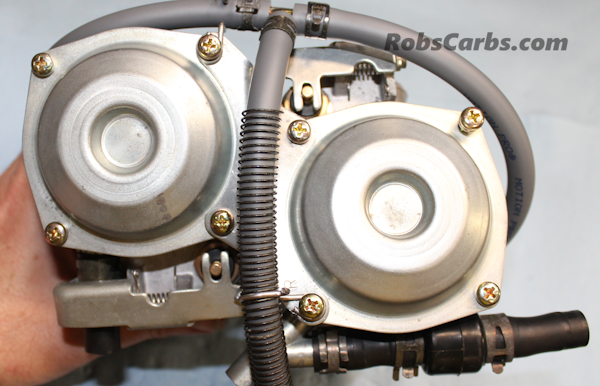

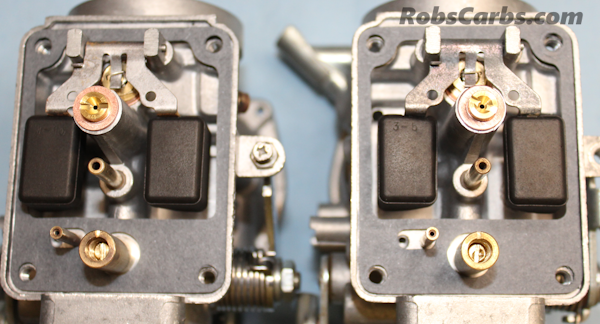

Below is a pair of '84-'87 XV700 Virago 42W Hitachi HSC40 carbs and some pictures of the XV1100 '86-'87 so you can see the added air cut-off valve housings added to the sides for this model only. The XV700 were the same from '84-'87 other than the California version that has different internal tuning. These were a special version of the Hitachi HSC40 only used on the '86-'87 XV1100 Virago, '84-'85 XV1000 and the XV700 models below. This only pertains to US models, especially the 700cc as it was only US.
'84-'87 XV700
Virago---------------------------------------42W
'84-'87 XV700
Virago----------------------------------------1RV California
'84-'85 XV1000
Virago-------------------------------------42G
'84-'85 XV1000
Virago-------------------------------------42H California
'86-'87 XV1100
Virago-------------------------------------1TE
'86-'87 XV1100
Virago-------------------------------------1TA California

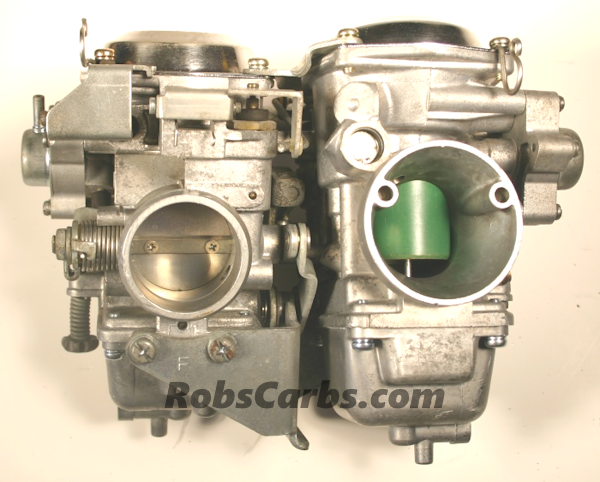

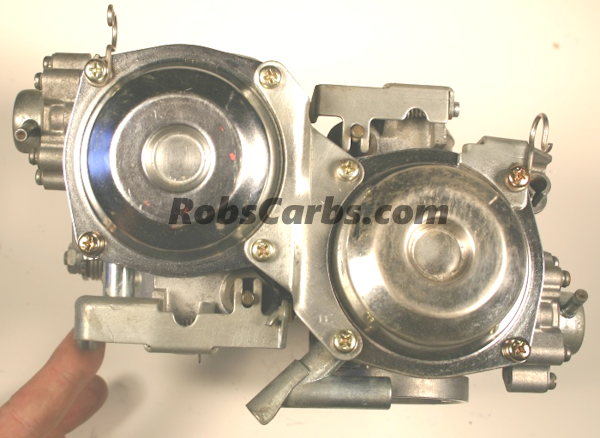

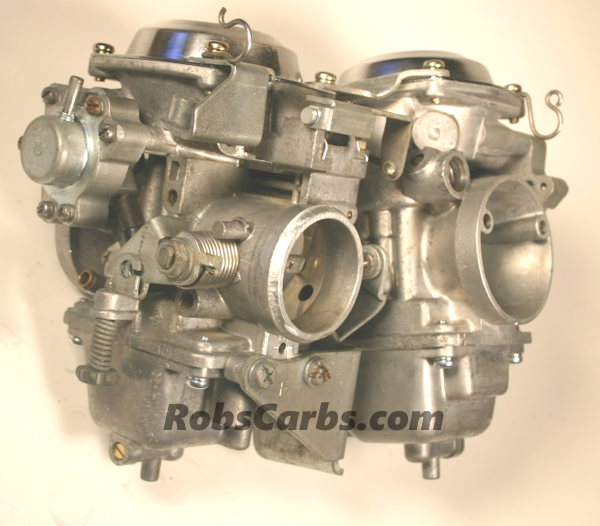

* XV1100'86-'87 is a little different as they added air cut-off
valves (anti-backfire) devises to the sides of each carb as seen
below.
Yamaha Year Codes
| A- | 1974 |
| B- | 1975 |
| C- | 1976 |
| D- | 1977 |
| E- | 1978 |
| F- | 1979 |
| G- | 1980 |
| H- | 1981 |
| J- | 1982 |
| K- | 1983 |
| L- | 1984 |
| N- | 1985 |
| S- | 1986 |
| T- | 1987 |
| U- | 1988 |
| W- | 1989 |
| A- | 1990 |
| B- | 1991 |
| D- | 1992 |
| E- | 1993 |
| F- | 1994 |
| G- | 1995 |
| H- | 1996 |
| J- | 1997 |
| K- | 1998 |
| L- | 1999 |
| M- | 2000 |
| N- | 2001 |
| P- | 2002 |
| R- | 2003 |
| S- | 2004 |
| T- | 2005 |
| V- | 2006 |
| W- | 2007 |
| X- | 2008 |
| Y- | 2009 |
| Z- | 2010 |
| A- | 2011 |
| B- | 2012 |
| D- | 2013 |
| E- | 2014 |
| F- | 2015 |
| G- | 2016 |
| H- | 2017 |
| J- | 2018 |
| K- | 2019 |
| L- | 2020 |
| M- | 2021 |
| N- | 2022 |
| P- | 2023 |
