'94-'97 RF900R With Mikuni BDST36SS CV Down-Draft Carbs

This is the first and final generation, for the US, of the RF900R. These are very unique carbs for a Suzuki, they resemble Yamaha second gen FZR1000 carbs. This bike had a motor based off the GSXR1100W, but with a down-draft head. A cross bread sport tour-super sport that was short lived. Care must be taken with these carbs as some parts are almost unobtanium. They made a 600 version with almost the same carb set, but even they are not exact.

Starting in '71 Suzuki started year coding bikes in the last letter used in the name. You may see this code on your bikes paperwork or in a parts list or catalog.  I leave this off as it is redundant if you are showing the year anyway. There is a chart below to find your year code.

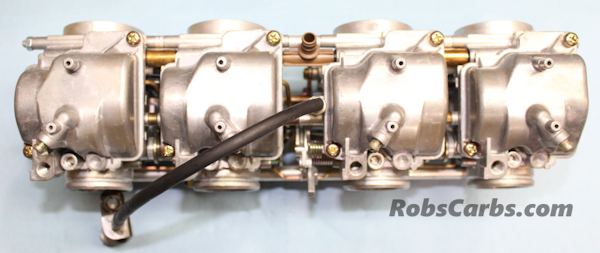

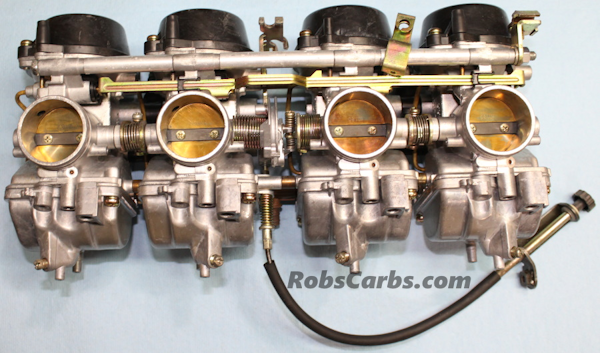

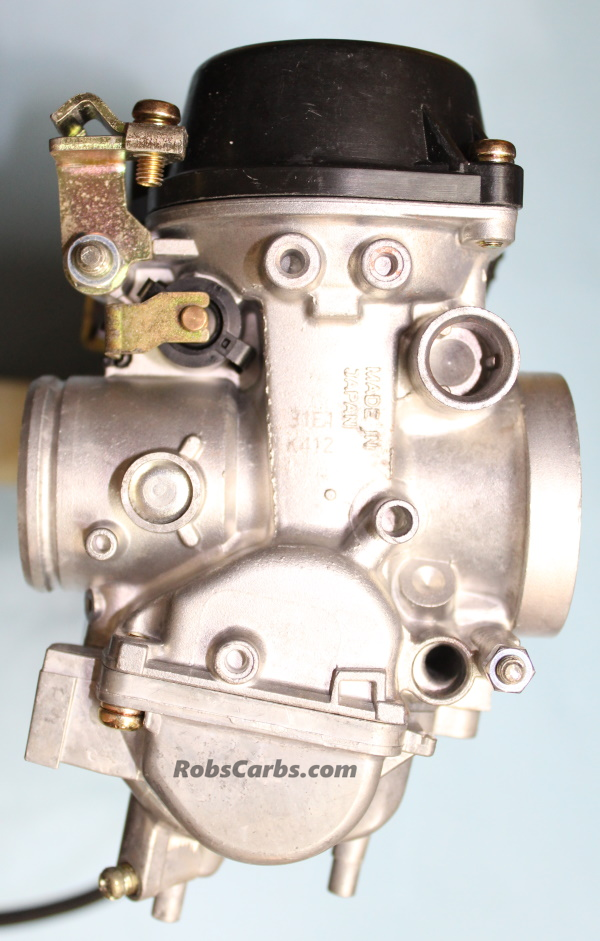

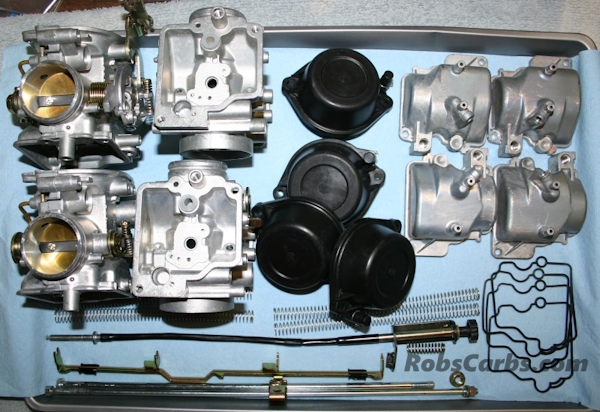

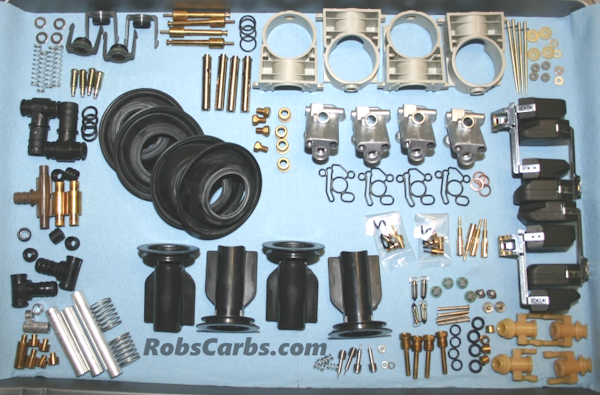

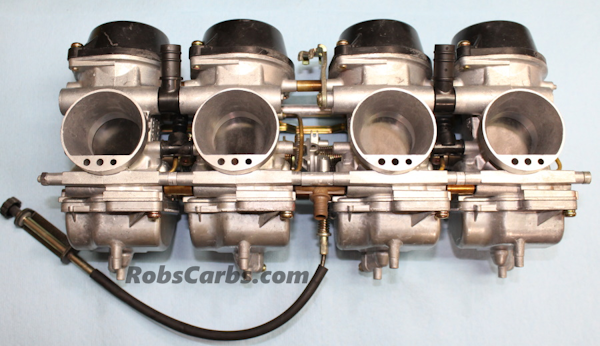

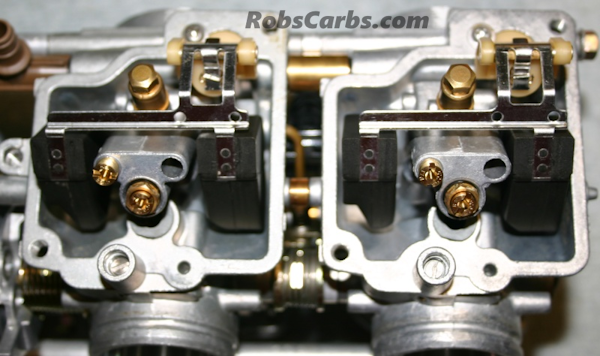

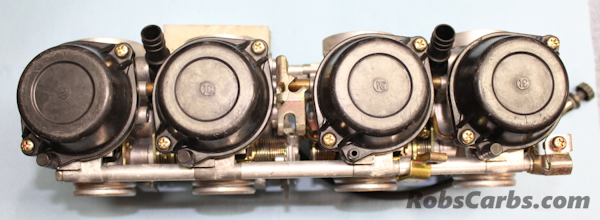

Below is a set of '95-'97 RF900R 31E10 carbs. These carbs take a lot of care to do them correctly. I have rebuilt a few of these and most had many pitfalls involved with the job. They have a lot of things other carbs do not have and many things to overlook if your not on your toes.  These bikes run awesome when set-up correctly.

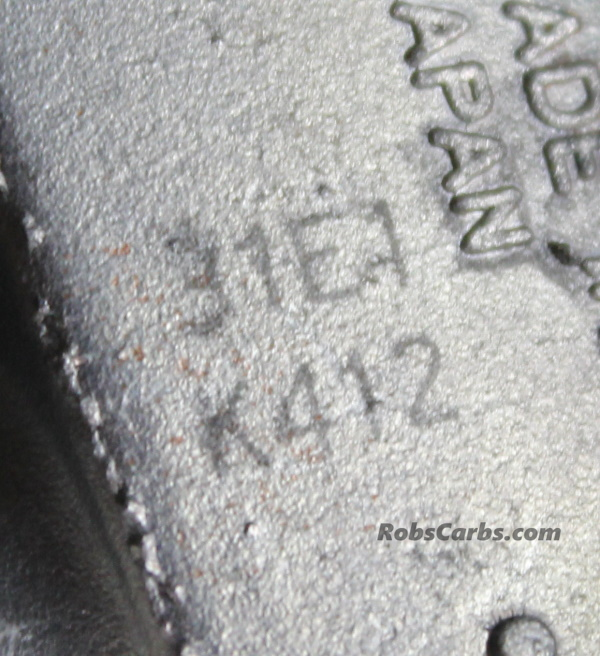

'94-'97 RF900R--------------------------------------------------31E10
'94-'97 RF900R---------------------------------------------------31E40 California
