'01-'05 GSF1200 Bandits with Mikuni BSR36 Diamond Slide Carbs
This is the second generation of the GSF1200 Bandit with the new diamond slide BSR36 carbs. These carbs not only fit the second gen, but they bolt on the first gen too. Carful ID is necessary since this engine is basically the same as any 1127 motored Katana and GSXR, they could have a variety of incorrect carbs mounted. This year range is all the same carb and tuning. However, they have internal tuning differences on the California models.
Starting in '71 Suzuki started year coding bikes in the last letter used in the name. You may see this code on your bikes paperwork or in a parts list or catalog. I leave this off as it is redundant if you are showing the year anyway. There is a chart below to find your year code.

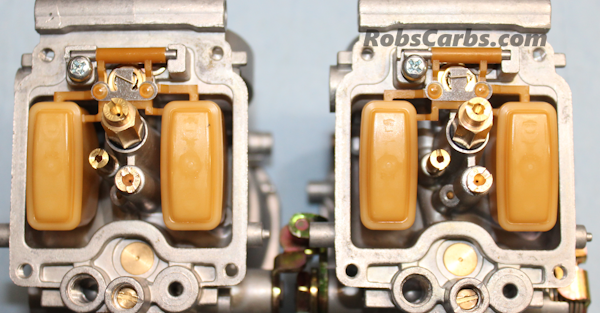

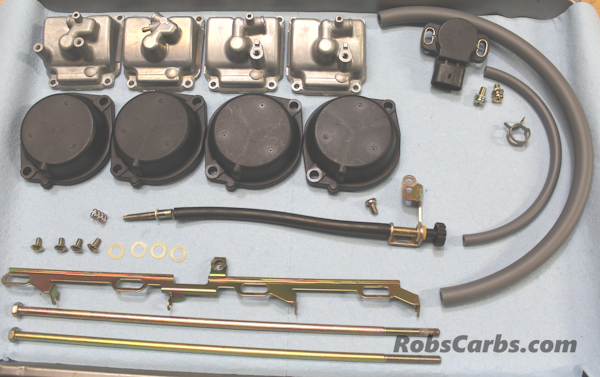

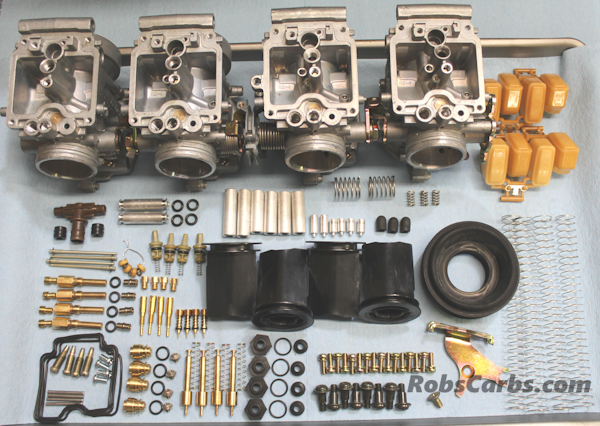

Below is a set of '98-'05 GSF1200 32F10 BSR36 carbs. The GSF1200 and GSF1200S are the same for all years listed, but the California versions do have different internal tuning.
'01-'05 GSF1200 Bandit-------------------------------------------------------32F10
'01-'05 GSF1200 Bandit-------------------------------------------------------32F20
California
Suzuki Year Codes
| R- | 1971 |
| J- | 1972 |
| K- | 1973 |
| L- | 1974 |
| M- | 1975 |
| A- | 1976 |
| B- | 1977 |
| C- | 1978 |
| N- | 1979 |
| T- | 1980 |
| X- | 1981 |
| Z- | 1982 |
| D- | 1983 |
| E- | 1984 |
| F- | 1985 |
| G- | 1986 |
| H- | 1987 |
| J- | 1988 |
| K- | 1989 |
| L- | 1990 |
| M- | 1991 |
| N- | 1992 |
| P- | 1993 |
| R- | 1994 |
| S- | 1995 |
| T- | 1996 |
| V- | 1997 |
| W- | 1998 |
| X- | 1999 |
| Y- | 2000 |
| K1- | 2001 |
| K2- | 2002 |
| K3- | 2003 |
| K4- | 2004 |
| K5- | 2005 |
| K6- | 2006 |
| K7- | 2007 |
| K8- | 2008 |
| K9- | 2009 |
| L0- | 2010 |
| L1- | 2011 |
| L2- | 2012 |
| L3- | 2013 |
| L4- | 2014 |
| L5- | 2015 |
| L6- | 2016 |
| L7- | 2017 |
| L8- | 2018 |
| L9- | 2019 |
| M0- | 2020 |
| M1- | 2021 |
| M2- | 2022 |
| M3- | 2023 |
| M4- | 2024 |
| M5- | 2025 |
