'95-'06 VN800 Vulcan Keihin Single Side-draft CVK36 Carb
This represents the second gen V-Twin water cooled Vulcan cruiser bikes. These bikes came in three varieties. The standard custom style with a 21 inch front wheel, the Classic style with a 16 inch front wheel, and the Drifter that has the unique look of an old Indian. A very popular motorcycle that has a tendency of having very bad tune jobs that cause them to run super rich. I have built a lot of these back to smooth running as they should be. Also the fuel inlet tee can get broken so I can install a all brass version that will last forever.

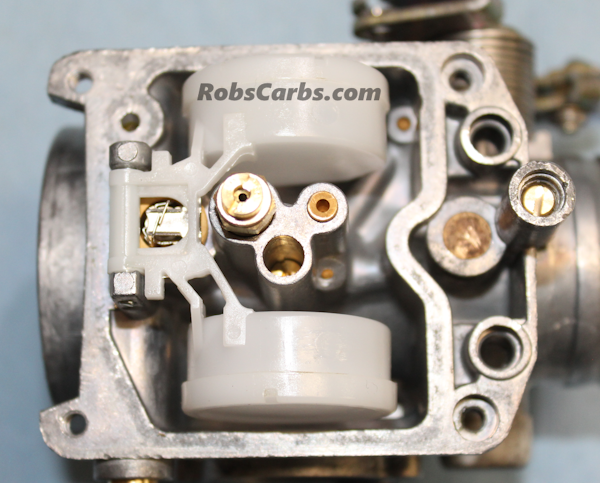

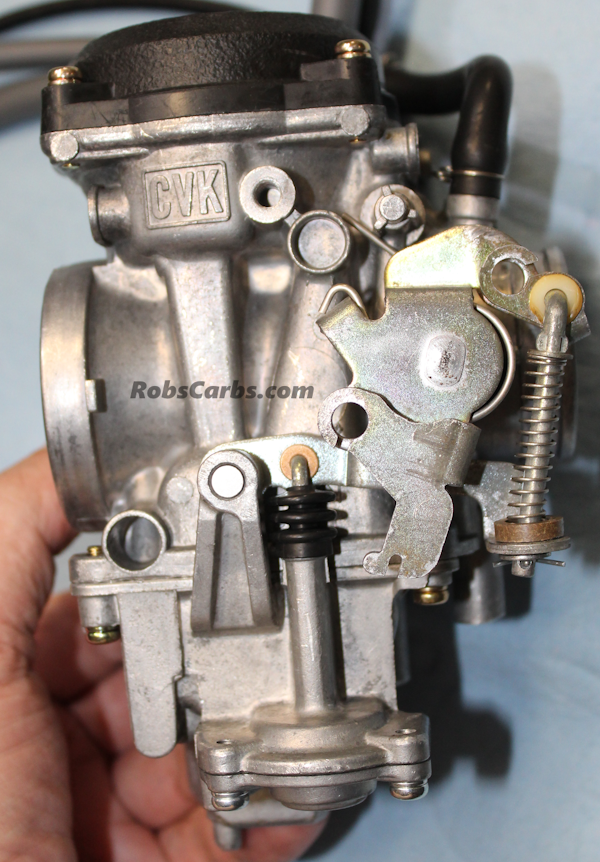

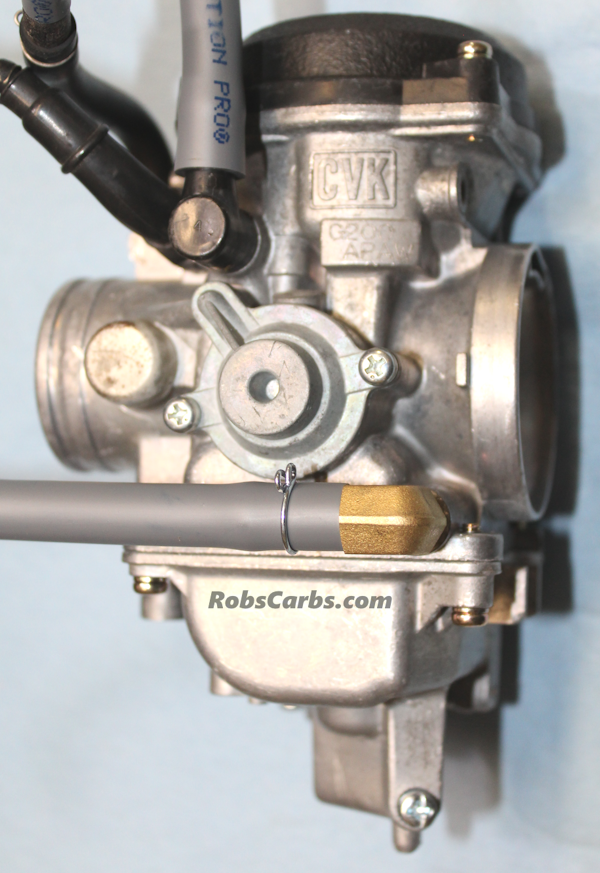

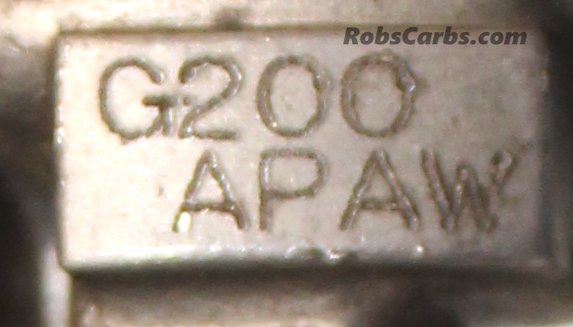

Pictured below is a VN800 G200 carb which is a CVK 36 side-draft. All of these models physically interchange, but will have different internal tuning so care must be taken in the ID of the carb before parts are acquired. These only represent US street models and years.
'95-'05 VN800A1-A11 Vulcan --------------------------------------------------------(G200)
'95-'05 VN800A1-A11 Vulcan Classic-----------------------------------------------(G021)
California
'96 VN800B1-B10 Vulcan Classic--------------------------------------------------(G200)
'96 VN800B1-B10 Vulcan Classic-----------------------------------------------------(G021)
California
'00 VN800C2 Vulcan Drifter-----------------------------------------------------------(G452)
'00 VN800C2 Vulcan Drifter-------------------------------------------------------------(G559)
California
'01-'05 VN800E1-E5 Vulcan Drifter-------------------------------------------------(G452)
'01-'05 VN800E1-E5 Vulcan Drifter---------------------------------------------------(G559)
California
'06 VN800E6F Vulcan Drifter---------------------------------------------------------(G452)
'06 VN800E6F Vulcan Drifter-----------------------------------------------------------(G452)
California
I can also fix the factory plastic fuel elbow with all brass
versions
