'82-'86 KZ550 Fours with CV Slide TK (Teikei) Carbs
This is the KZ550 fours with CV slide TK carbs. All the years listed will interchange physically so sometimes the wrong set can be installed. Although I always recommend installing the proper set, as long as you match the parts to the ID on the set you are typically fine.

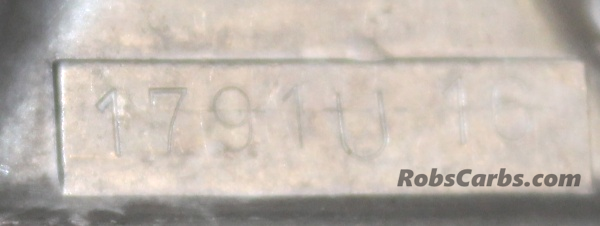

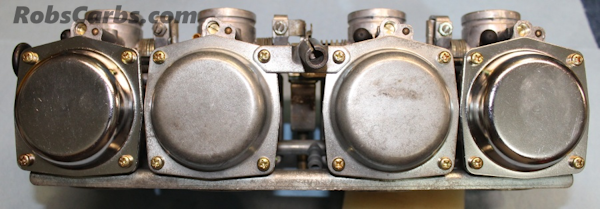

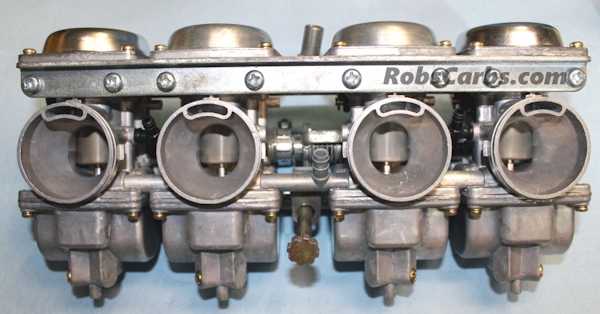

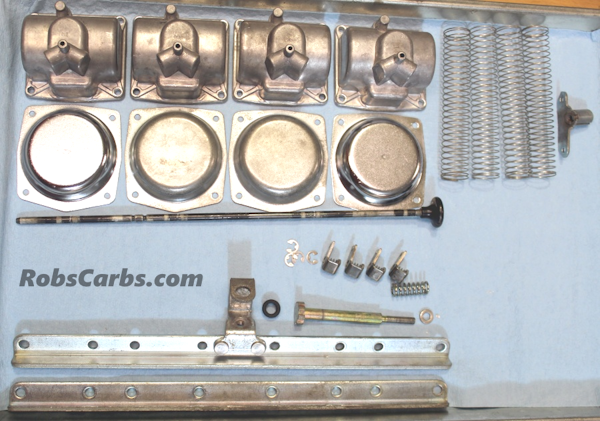

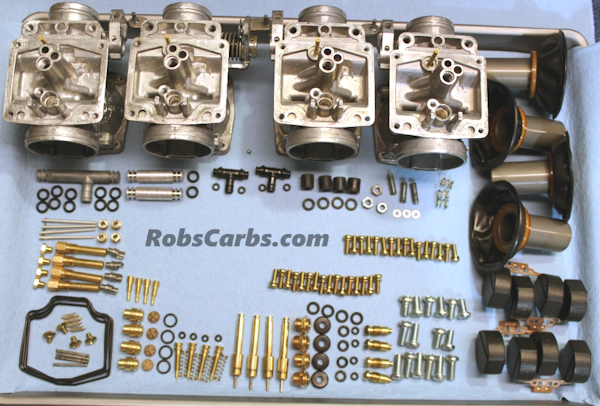

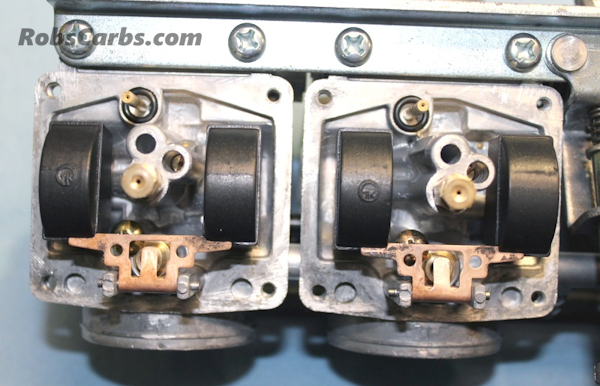

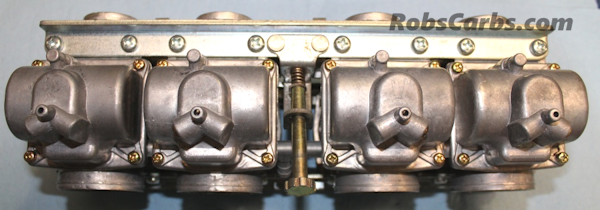

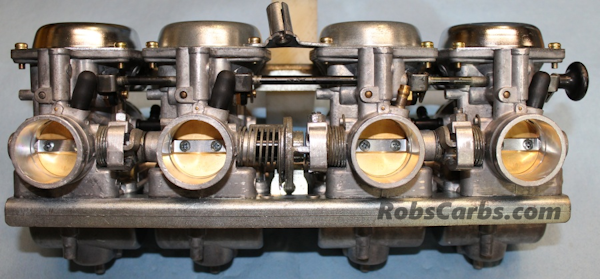

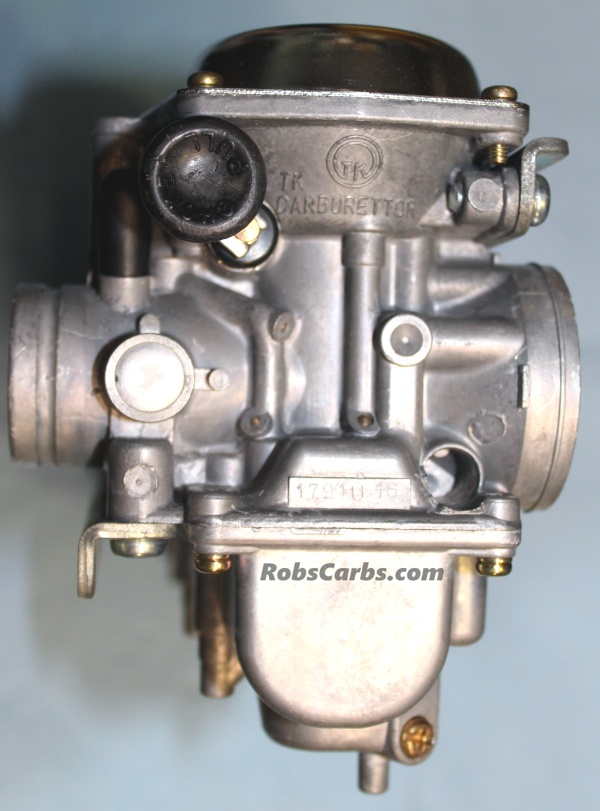

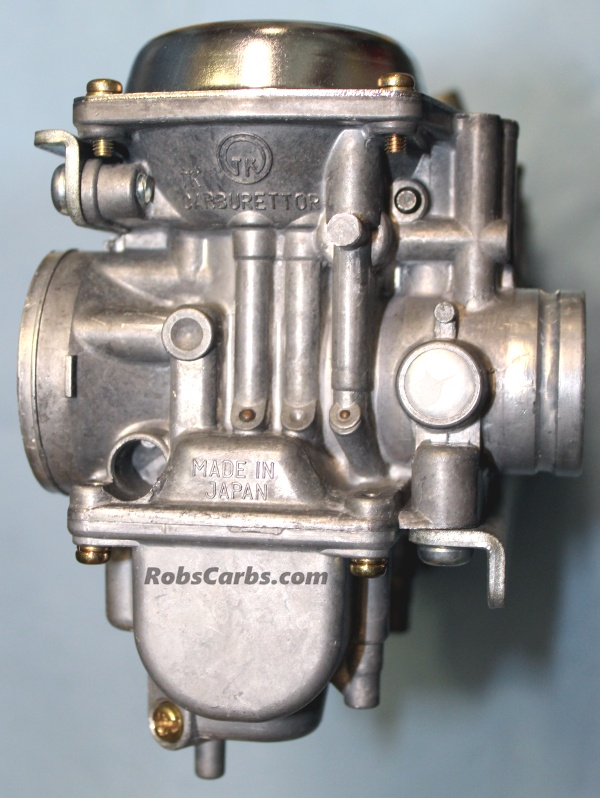

Below is a set of '83 KZ550M1 TK 1791 carbs. All models and years listed here will physically interchange, but the different ID numbers do not have the same internal tuning and most have black plastic tops unlike the set pictured.
'82 KZ550H1 GPZ----------------------------------------------1510
'83 KZ550H2 GPZ----------------------------------------------1510
'83 KZ550M1 LTD Shaft Drive------------------------------1791
'83 KZ550F1 Spectre Shaft Drive--------------------------1638
'83 KZ550F1 Spectre Shaft Drive--------------------------1067
California
'84 ZX550A1 GPZ-----------------------------------------------1974
'84 ZX550A1 GPZ-----------------------------------------------1984
California
'84 KZ550F2 Spectre Shaft Drive--------------------------1638
'84 KZ550F2 Spectre Shaft Drive--------------------------1067
California
'85 ZX550A2 GPZ-----------------------------------------------1974
'85 ZX550A2 GPZ-----------------------------------------------1984
California
'86 ZX550A2 GPZ-----------------------------------------------1974
'86 ZX550A2 GPZ-----------------------------------------------1984
California
