'01-'05 ZR1200A ZRX1200 Keihin Side-draft CVK36 Carbs
This is the US made ZRX1200 almost the same model as the ZRX1100 with some tweaks. It has a set of CVK36 side-draft carbs. They look similar to '95-'97 GPZ1100, but these have plastic slides and the GPZ1100 still uses the earlier metal bottom slides. A lot of these received jet kits so you have to take care to identify this before rebuilding or the results will be horrific run ability and loose all that torque these bikes are known for.

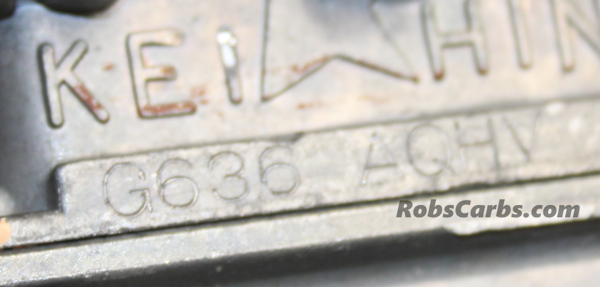

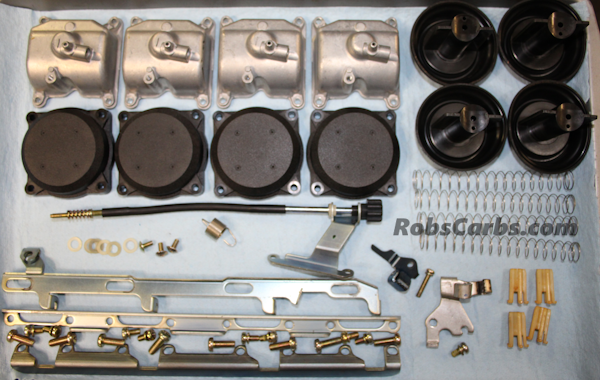

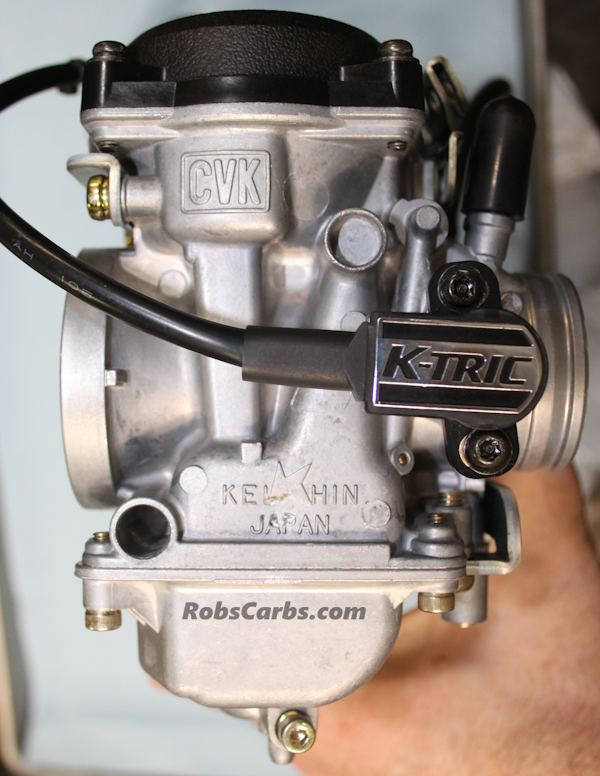

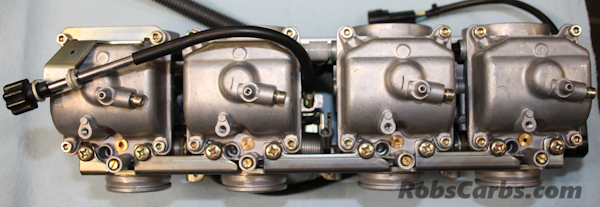

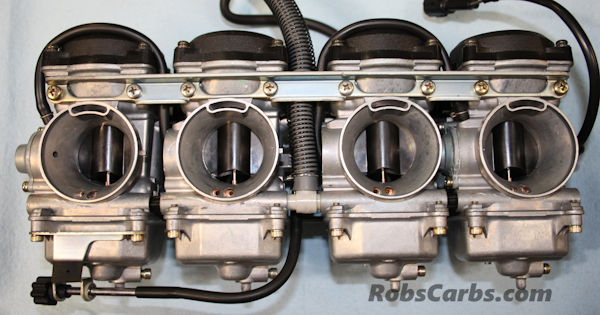

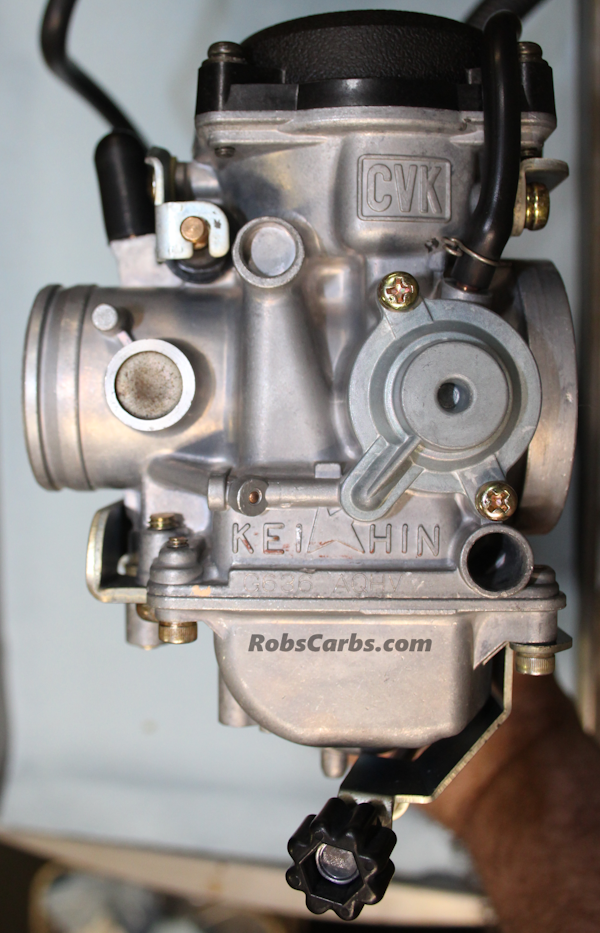

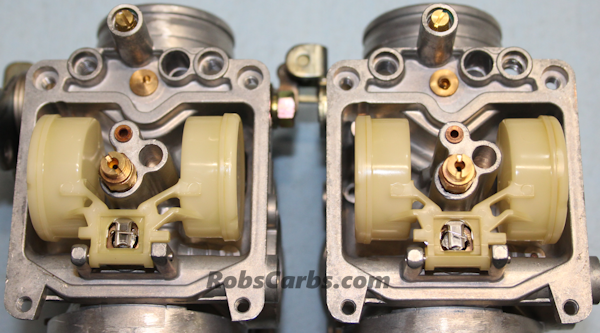

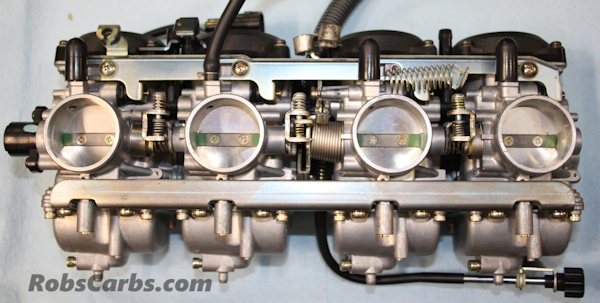

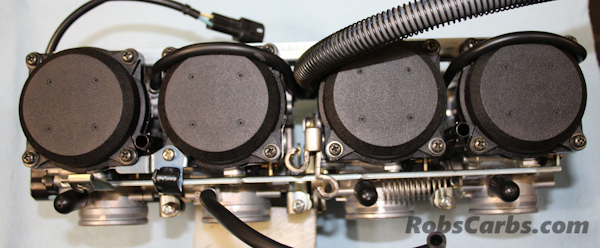

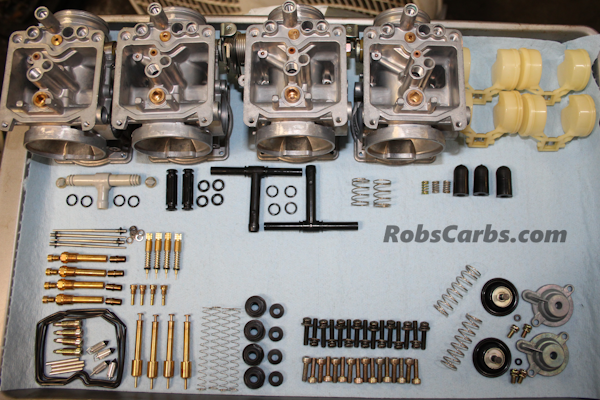

Pictured below is a set of '01-'03 ZR1100A G636) carbs. All sets will interchange with any year, but they will have different internal tuning.
'01-'03 ZR1200A1-A3 ZRX1200R--------------------------(G636)
'01-'03 ZR1200A1-A3 ZRX1200R--------------------------(G638)
California
'04-'05 ZR1200A4-A5 ZRX1200R--------------------------(G036)
'04-'05 ZR1200A4-A5 ZRX1200R--------------------------(G037)
California
