'88-'98 VT600C Shadow V-Twin KeiHin VDFD and VDFE Dual Carbs
VT600C '88-'98 carbs are basically the same for all years and have the smallest VD body design similar to the V-Four 700-750's. They can easily be mixed-up with VT500 Sometimes you will find the bodies interchanged between all models of theVT500 and VT600C's. This means care should be taken in correct id of the carbs before acquiring replacement parts. Also care in installing parts in the front carbs compared to the rear carbs. Even factory manuals are vague on this issue and do not explain all or none of the front-to-rear differences including main jet emulsion tubes, slide springs, jet needles, and main jet sizes.

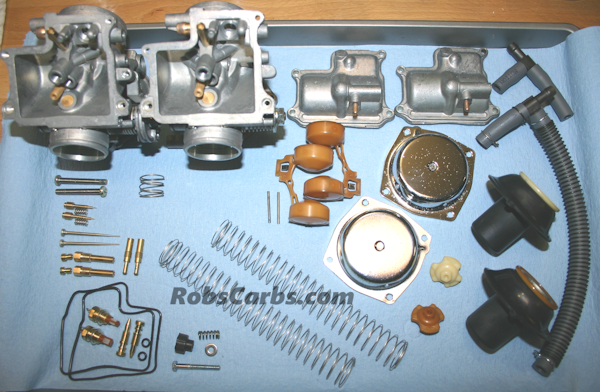

Below is a set of VT600C Shadow '83-'84 VDFDAC carbs in assembly stage. All sets look and fit the same, but have different internal tuning.
'88-'89 VT600C Shadow 49 states (VDFDAA)
'88-'89 VT600C Shadow cal (VDFEAA)
'91-'98 VT600C Shadow 49 states (VDFDAC)
'91-'98 VT600C Shadow cal (VDFEAC)
