'82-'83 VF750S V45 Sabre V-Four KeiHin VD50's

VF750S V45 Sabre share a lot in common with the VF750C V45 Magna's models, but are different in the plenum shape and internal tuning. Sometimes you will find the bodies interchanged between all four models. This means care should be taken in correct id of the carbs before aquiring replacement parts. Also care in installing parts in the front carbs compared to the rear carbs. Even factory manuals are vague on this issue and do not explain all front-to-rear differences including main jet emulsion tubes, slide springs, jet needles, and main jet sizes.

Below is a set of '82 and '83 VF750S Sabre's (VD50AA) and (VD50CA) carbs. Both VF750S models look the similar, but do not share the same plenums or internal tuning parts.

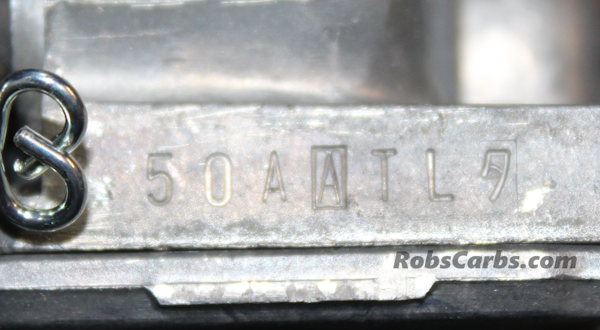

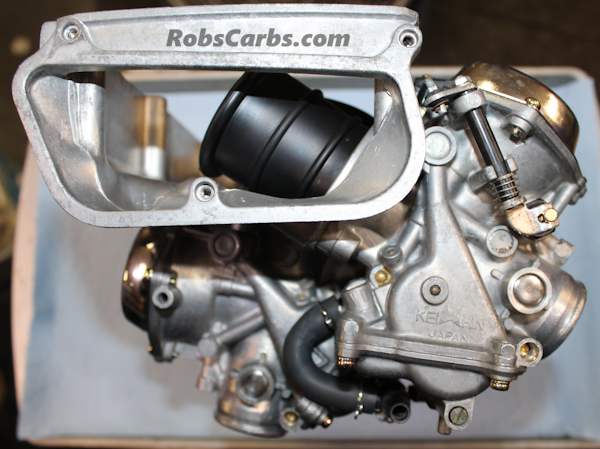

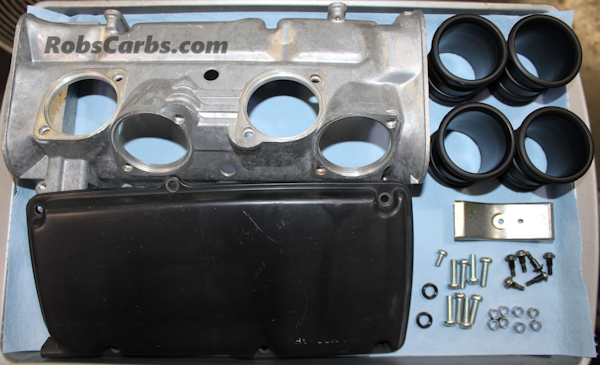

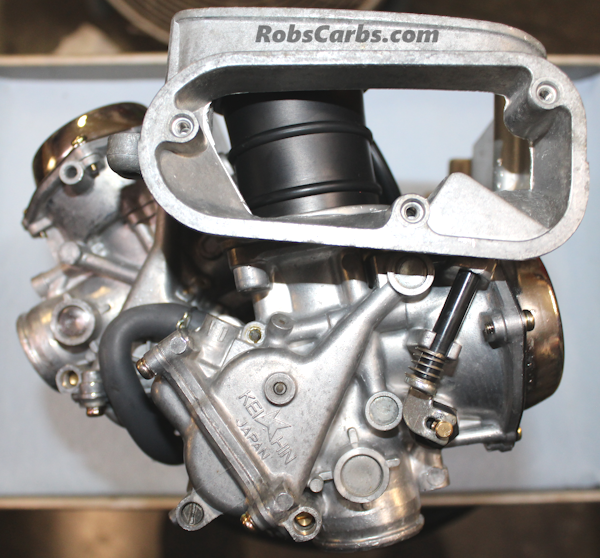

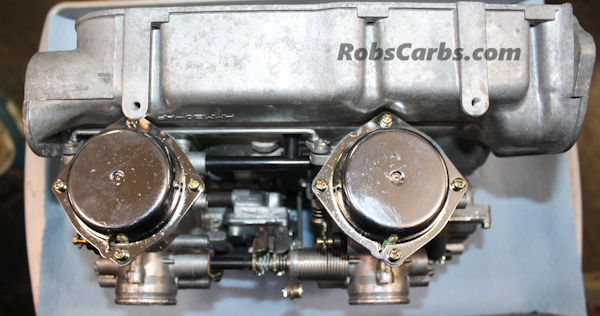

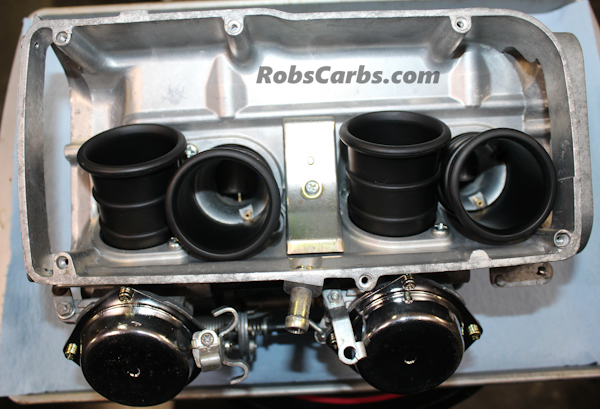

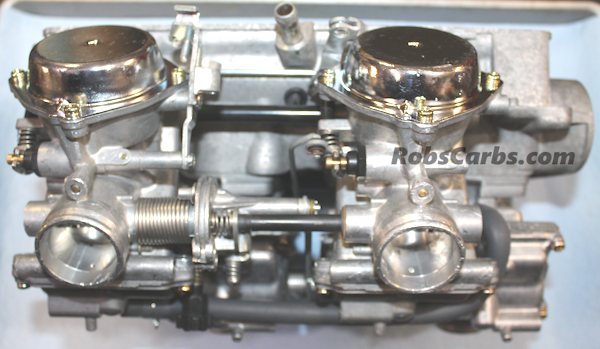

'82 VF750S V45 Sabre (VD50AA)

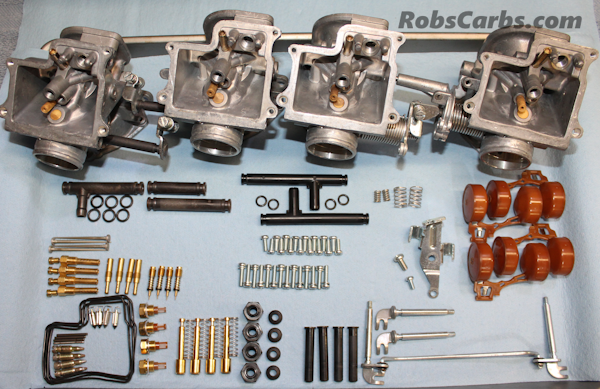

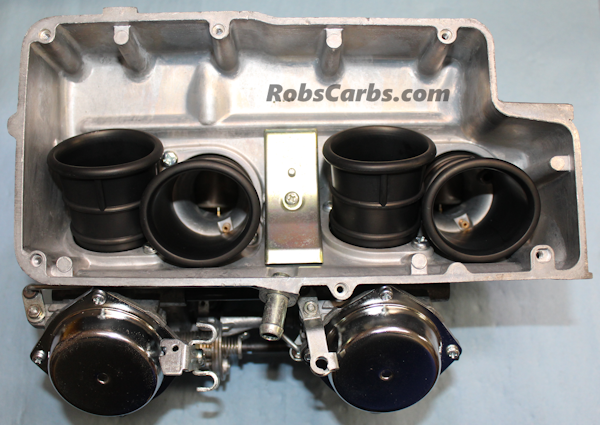

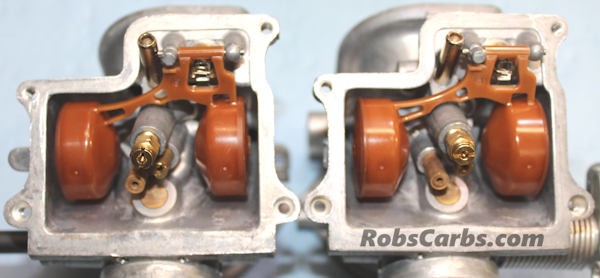

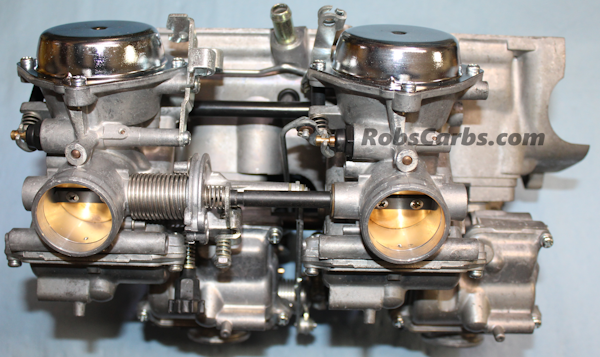

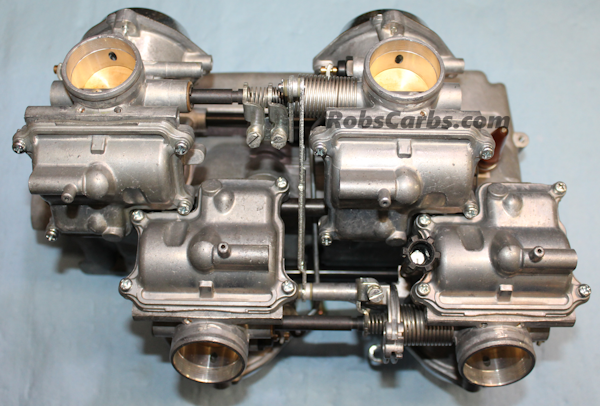

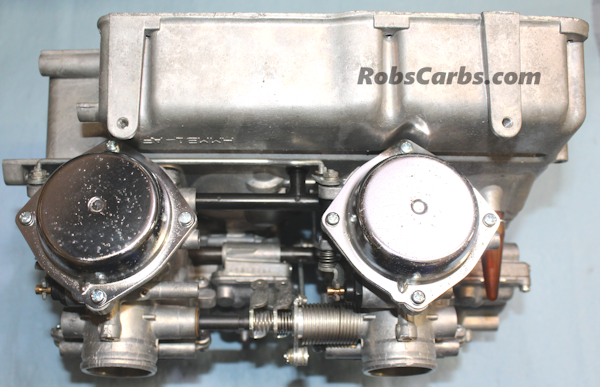

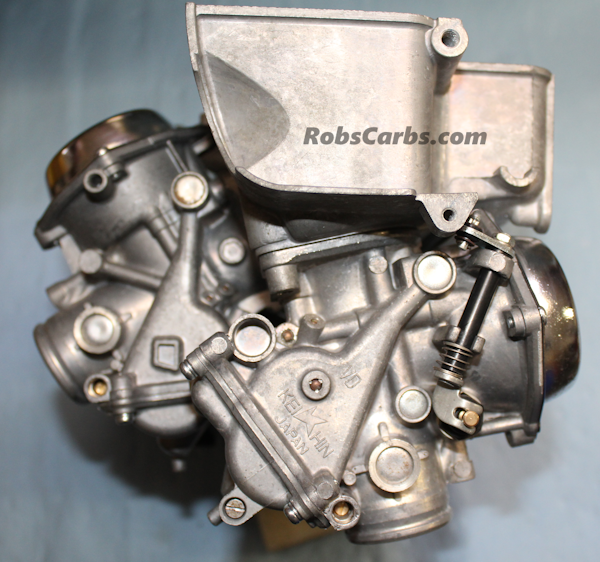

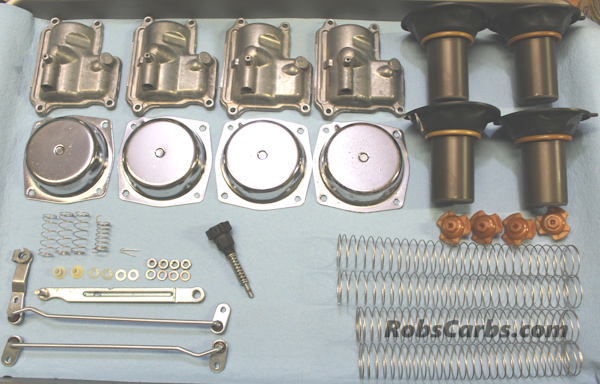

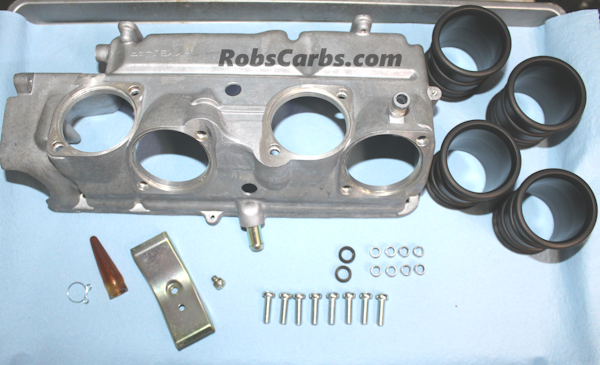

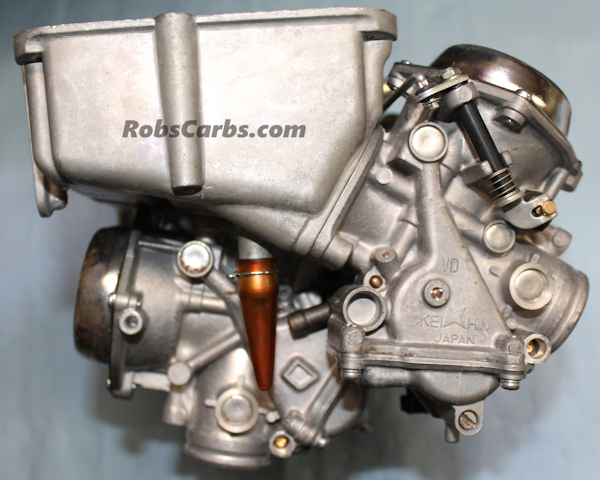

'83 VF750S V45 Sabre (VD50CA)

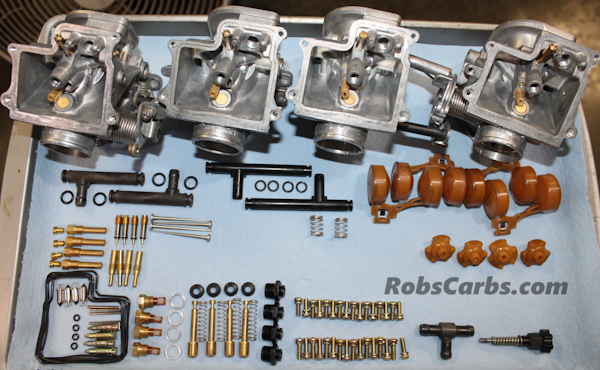

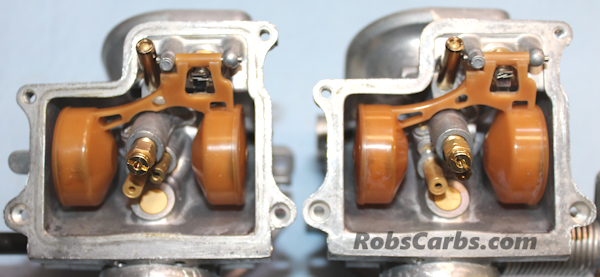

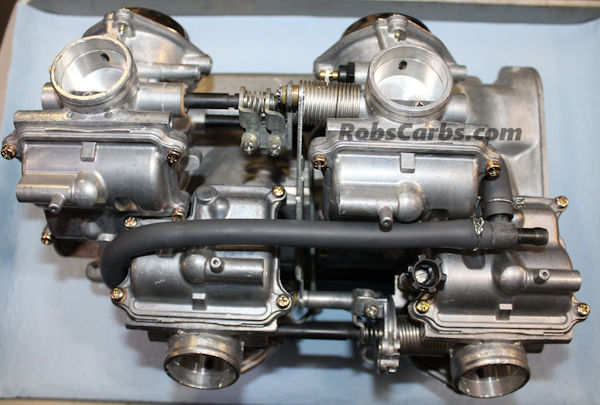

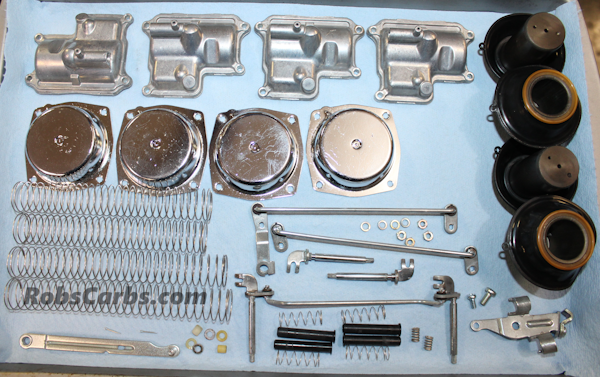

VF750S Sabre '82 Carb '82 VF750S Sabre (VD50AA)
