'83 VF750F Interceptor V-Four KeiHin VD52's and VD05's
VF750F Interceptor was made only in 1983 in the USA as far as I have seen. However, Honda does list a '84 750cc along with a California version so I decided to list them too. Typically you will find, in the US only, this model was reduced to a 700cc in 1984-'85 to bypass tarriffs on bikes 750cc and larger. This was NOT the case in other countries as the odd 700cc versions were made for the US market only.
Care should be taken in correct id of the carbs before aquiring replacement parts. Also care in installing parts in the front carbs compared to the rear carbs. Even factory manuals are vague on this issue and do not explain all front-to-rear differences including main jet emulsion tubes, slide springs, jet needles, and main jet sizes.

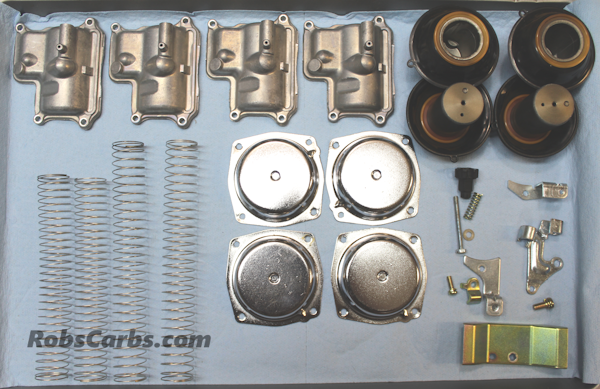

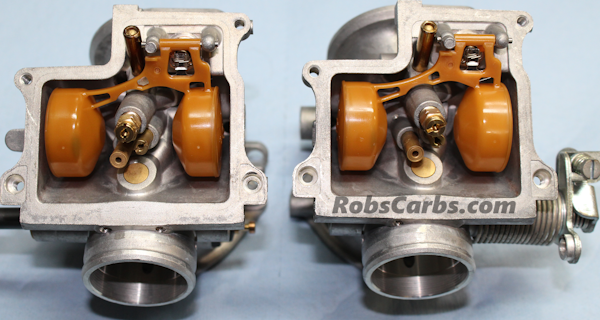

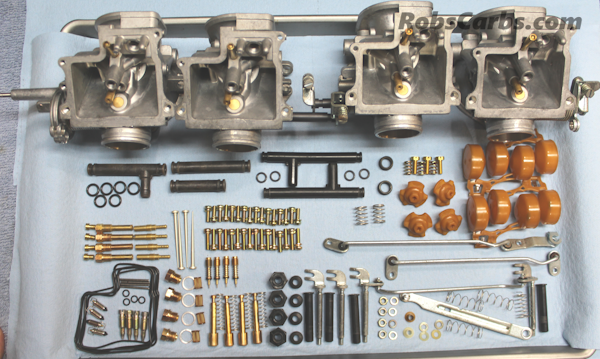

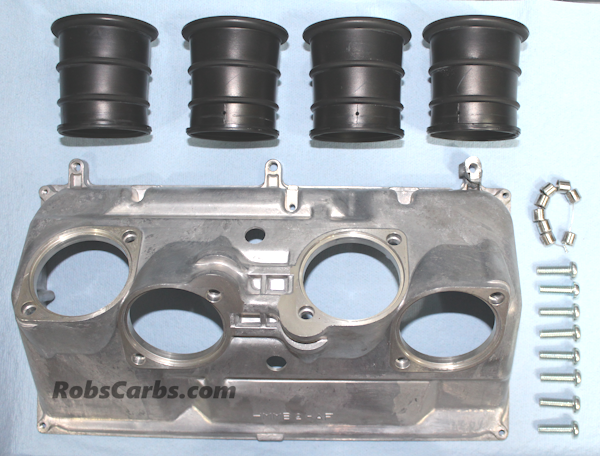

Below is a set of '83 VF750F Interceptor (VD52AA) carbs, laid out for assembly. Both VF750F and the VF700F models look the same, but do not share the same internal tuning parts.
'83 VF750F Intercepter 49 states (VD52AA)
'84 VF750F Intercepter 49 states (VD52CA)
'84 VF750F Interceptor Cal (VD05AA)
'84 VF700F Intercepter 49 states (VD52DA)
'84 VF700F Intercepter Cal (VD05BA)
'85 VF700F Intercepter 49 states (VD52DB)
'85 VF700F Intercepter Cal (VD05BA)
